Behavior Tree → SMV Translation

BehaVerify’s core contribution is a translation from BTs to SMV models that exposes exactly the right transitions to nuXmv. This page formalises the fast-forwarding encoding from Serbinowska & Johnson (SEFM 2022) and describes its variable-staging scheme.

Encoding at a glance

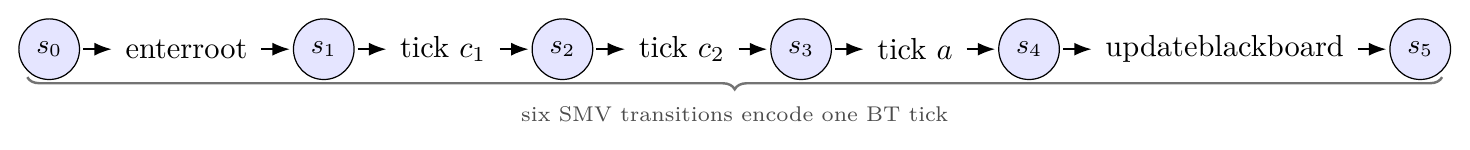

Naive encoding: six SMV transitions encode one BT tick.

Naive encoding. Every internal BT step — entering the root, ticking each child, bubbling statuses up, updating the blackboard — is its own SMV transition.

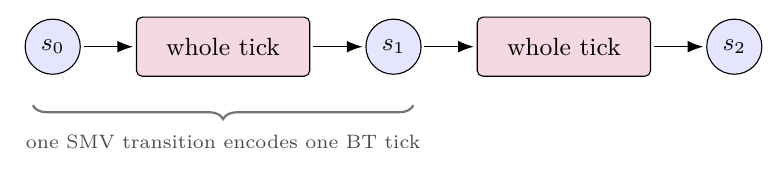

Fast-forwarding encoding: one SMV transition encodes one BT tick.

Fast-forwarding encoding. One SMV transition collapses an entire root-to-leaf traversal plus all blackboard updates into a single atomic step.

Let \(T\) be a BT with node set \(V\) and blackboard variables \(B = \{b_1, \ldots, b_k\}\). Write \(\Sigma = \mathrm{dom}(B)\) for the set of blackboard valuations.

Naive encoding

The naive encoding tracks a program counter \(\mathrm{pc} \in V \cup \{\bot\}\) that names the node currently being visited. A single SMV transition corresponds to one atomic step of the BT interpreter: entering a composite, ticking a child, bubbling up a status. Because a full tick of a tree with \(n\) nodes requires \(\Theta(n)\) such steps, the induced SMV model grows linearly in the tree size at every “real” tick of the BT.

Fast-forwarding encoding

The fast-forwarding encoding removes the program counter. Every SMV transition encodes a whole tick: given a blackboard valuation \(\sigma\), the transition \(R(\sigma, \sigma')\) holds iff \(\sigma'\) is the blackboard that results from running one tick of the BT on \(\sigma\). Formally, if \(\mathrm{tick}_T : \Sigma \to \Sigma\) is the BT’s one-tick blackboard map, then

\[R_{\text{FF}}(\sigma, \sigma') \;\Leftrightarrow\; \sigma' = \mathrm{tick}_T(\sigma).\]

Serbinowska & Johnson showed that this encoding is semantically equivalent to the naive one for every INVAR/CTL/LTL formula whose atoms refer only to blackboard variables and post-tick node statuses — the very formulas that BehaVerify’s DSL accepts.

Variable staging

A single tick may read and write the same blackboard slot multiple times (e.g., a sequence whose children all update pos_x). The straightforward compilation into SMV would use intermediate variables for each such read, exploding the state space. BehaVerify instead stages each blackboard variable:

\[b_i \;\Longrightarrow\; b_i^{(0)},\; b_i^{(1)},\; \ldots,\; b_i^{(n_i)}\]

where \(b_i^{(0)}\) is the tick-start value, \(b_i^{(n_i)}\) is the tick-end value, and the intermediate stages \(b_i^{(j)}\) record writes in the order they occur inside the tick. The SMV transition relation then closes the loop across ticks with

\[\mathrm{next}(b_i^{(0)}) \;=\; b_i^{(n_i)}.\]

An intermediate stage \(b_i^{(j)}\) is dead if no subsequent stage reads it; BehaVerify’s post-generation pass (behaverify.dsl_to_nuxmv) removes dead stages, so the final model carries only live stages.

Node trimming

A sub-tree whose guard condition (the tick_prerequisite plus any ancestor-imposed boolean) is unsatisfiable in every reachable state cannot fire. The trimming pass in behaverify.dsl_to_nuxmv identifies such sub-trees (via a conservative BDD-based reachability argument) and removes them from the emitted SMV. The --do_not_trim flag disables this pass.

Trimming is sound but incomplete: it never removes a node that could fire, and it may leave in place a node that never fires in practice.

Non-determinism

Unknown initial values or environmental noise are encoded as set-valued SMV assignments:

init(x) := {1, 2, 3};

nuXmv treats these as non-deterministic. Every property is then implicitly universally quantified over the choices:

\[M \models \varphi \;\Leftrightarrow\; \forall \text{resolution of the nondeterminism}.\; M^{\text{resolved}} \models \varphi.\]

This gives worst-case guarantees, adequate for safety properties but not for quantitative reasoning.

Putting it together

The full BehaVerify $to$ SMV pipeline is:

  1. Parse. TextX consumes a .tree and builds an AST.

  2. Validate. behaverify.check_grammar rejects type/scope/reference errors.

  3. Build IR. behaverify.node_creator converts the AST to the internal node tree.

  4. Meta-compile expressions. behaverify.meta_functions lowers prefix-notation expressions to per-backend expression trees, resolving constant_index and loop constructs.

  5. Generate SMV. behaverify.dsl_to_nuxmv walks the IR, emits the staging variables, the fast-forwarding transition relation, the specifications block, and (optionally) runs the trimming pass.

The resulting .smv file is self-contained: it can be fed to nuXmv without the original .tree.

Encoding size

Serbinowska & Johnson (SEFM 2022) report empirical sizes:

  • Naive encoding: state space \(\Theta(|V| \cdot 2^{|B|})\).

  • Fast-forwarding: state space \(\Theta(2^{|B|})\).

The authors verified a binary BT with 2,055 nodes under fast-forwarding; naive timed out well below 200. The practical takeaway: use fast-forwarding (the default) unless you are actively debugging the compiled transition and want per-step granularity.
